Cadillac Escalade: Hitch Cover (with Dual Exhaust) - Towing Equipment - Towing - Driving and Operating - Cadillac Escalade Owner's ManualCadillac Escalade: Hitch Cover (with Dual Exhaust)

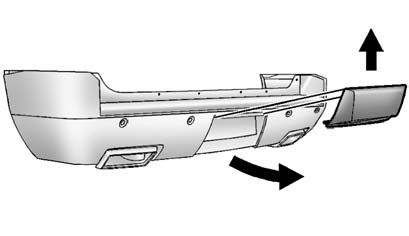

To remove the hitch cover:

1. Turn the fasteners on the lower tabs 90 degrees counterclockwise.

1. Turn the fasteners on the lower tabs 90 degrees counterclockwise.
2. Pull the lower edge of the cover out slightly.
3. Lift the cover up off the upper bracket.

To reinstall the hitch cover:

1. Insert the tabs on the hitch cover into the slots in the upper bracket.
2. Move the bottom of the cover forward.
3. Turn the fasteners on the lower tabs 90 degrees clockwise to lock the cover in place.
