Range Rover: Using RSE
The system is operated using the remote control.
To release the remote from the docked position, press at the top of the remote to unlatch it.
NOTICE
Do not attempt to pull the remote control out of its docked position.
When the system is activated the remote control touch screen becomes active.
Using the appropriate button (6 or 10) or on screen soft key (right or left) to select the required screen, will allow options to be set and selected.

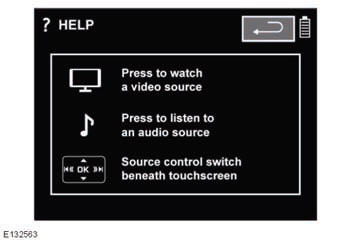

Note: A help screen is available from each screen/menu. To view the help screen for guidance on the available functions and options, touch the question mark (?) icon.
Remote control
1. Press to undock remote control.
NOTICE
Do not press the touch screen to undock the remote control.
2. Touch screen.

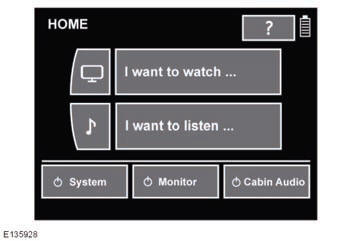

3. Home screen.
4. Video source.
5. Audio source.
6. Right screen s ...
Headphones
The volume control for each set of headphones is adjusted on the headphones.
Press the channel selector button to cycle through available channels. Select
the channel appropriate for the required s ...
