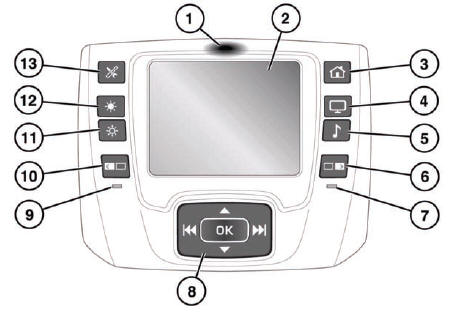

Range Rover: Remote control
1. Press to undock remote control.
NOTICE
Do not press the touch screen to undock the remote control.
2. Touch screen.
3. Home screen.
4. Video source.
5. Audio source.
6. Right screen select.
7. Right screen tell-tale. Illuminates when right screen has been selected.
8. Cursor movement and option select buttons.
9. Left screen tell-tale. Illuminates when left screen has been selected.
10. Left screen select.
11. Touch screen brightness decrease.
12. Touch screen brightness increase.
13. Touch screen settings.
Rear media settings
The rear media settings screen allows Limousine Mode to be turned on or off. When Limousine Mode is selected, the rear passengers can control the total cabin audio system via the remote control. ...Using RSE
The system is operated using the remote control. To release the remote from the docked position, press at the top of the remote to unlatch it. NOTICE Do not attempt to pull the remote contro ...See also:
