Range Rover: Under hood covers - removal - Maintenance - Range Rover Owner's ManualRange Rover: Under hood covers - removal

Range Rover / Range Rover Owner's Manual / Maintenance / Under hood covers - removal

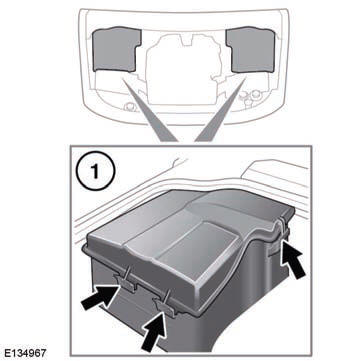

1. Press the tabs to release the cover from the casing. Note: Releasing the inboard

1. Press the tabs to release the cover from the casing. Note: Releasing the inboard tab on the front edge of the cover first will make it easier to release the remaining tabs.

2. Lift the front edge of the cover and slide forwards to remove.

    Engine compartment overview
    1. Dynamic response fluid reservoir cap. 2. Brake fluid reservoir cap. 3. Engine oil filler cap. 4. Engine coolant filler cap. 5. Windshield washer fluid filler cap. 6. Power steering fluid fil ...

    Under hood covers - refitting
    NOTICE Before refitting the underhood covers, ensure that no pipes, cables or other items, have been trapped between the cover and casing. 1. Slide the rear edge of the cover under the rubber ...
