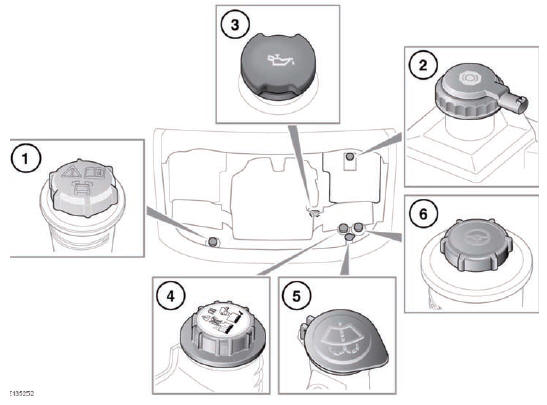

Range Rover: Engine compartment overview
1. Dynamic response fluid reservoir cap.
2. Brake fluid reservoir cap.
3. Engine oil filler cap.
4. Engine coolant filler cap.
5. Windshield washer fluid filler cap.
6. Power steering fluid filler cap.
WARNING
While working in the engine compartment, always observe the safety precautions. See 161, SAFETY IN THE GARAGE.
Do not drive if there is a possibility that leaked fluid will come into contact with a hot surface, such as the exhaust.
Closing the hood
WARNING
Do not drive with the hood retained by the safety catch alone.
1. Lower the hood until the safety catch engages. Using both hands, press the
hood down until the catches click.
2. Che ...
Under hood covers - removal
1. Press the tabs to release the cover from the casing. Note: Releasing the inboard
tab on the front edge of the cover first will make it easier to release the remaining
tabs.
2. Lift the front ...
