Cadillac Escalade: Rear Wiper Blade Replacement
1. Lift the wiper blade assembly up and out of the park rest position.
2. Pull the wiper blade assembly away from the backglass. The backglass wiper blade will not lock in a vertical position, so care should be used when pulling it away from the vehicle.

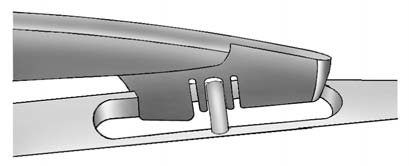

3. Turn the wiper blade assembly, and pull it off of the wiper arm. Hold the wiper arm in position and push the blade away from the wiper arm.
4. Replace the wiper blade.
5. Return the wiper blade assembly to the park rest position.
Front Wiper Blade Replacement
1. Pull the windshield wiper arm connector away from the windshield.
2. Squeeze the grooved areas on each side of the blade, and turn the blade assembly
away from the arm connector.
3. Install ...
Glass Replacement
If the windshield or front side glass must be replaced, see your dealer to determine
the correct replacement glass. ...
