Cadillac Escalade: Instrument Panel

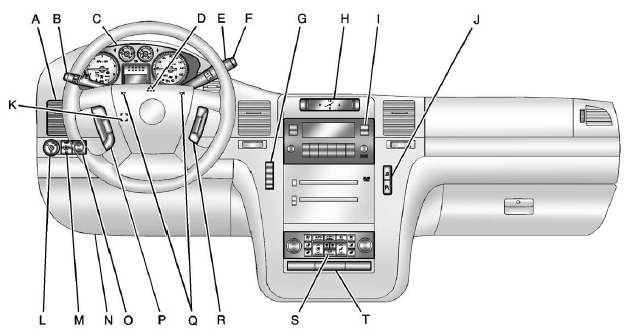

English Version Shown; Metric Similar.
A. Air Vents .
B. Turn and Lane Change Lever. See Turn and Lane-Change Signals . Windshield Wiper/Washer .
C. Instrument Cluster .
D. Hazard Warning Flashers .
E. Shift Lever. See Automatic Transmission . Driver Shift Control (DSC). See Manual Mode .
F. Tow/Haul Mode .
G. Driver Information Center (DIC) Buttons. See Driver Information Center (DIC) .
H. Clock .
I. Infotainment .
J. StabiliTrak® System . Rear Park Aid Disable Button. See Ultrasonic Parking Assist .
K. Steering Wheel Adjustment .
L. Exterior Lamp Controls .
M. Dome Lamp Override. See Dome Lamps . Instrument Panel Illumination Control . Fog Lamps .
N. Data Link Connector (DLC) (Out of View). See Malfunction Indicator Lamp .
O. Automatic Transfer Case Control (Hybrid only). See the hybrid supplement for more information.
P. Cruise Control . Heated Steering Wheel (If Equipped).
Q. Horn .
R. Steering Wheel Controls .
S. Dual Automatic Climate Control System .
T. Pedal Adjust Button. See Adjustable Throttle and Brake Pedal .
Power Assist Steps (If Equipped).
