Cadillac Escalade: RVC Location

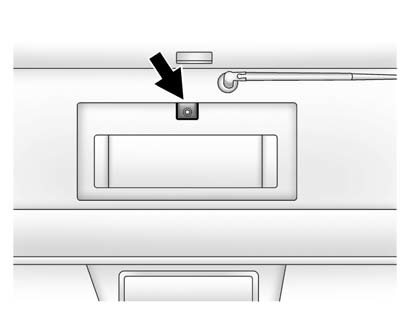

The camera is located above the license plate.

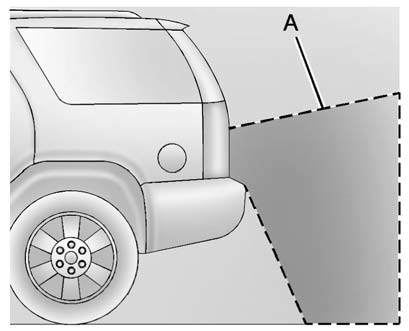

This shows the field of view that the camera provides.
A. View displayed by the camera
A. View displayed by the camera

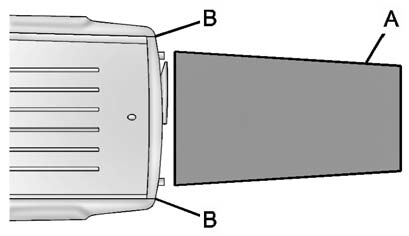

B. Corners of the rear bumper
Displayed images may be further or closer than they appear. The area displayed is limited and objects which are close to either corner of the bumper or under the bumper do not display.
Guidelines
The RVC system has a guideline overlay that can help the driver align the vehicle
when backing into a parking spot.
To turn the guidelines on or off:
1. Make sure that URPA has not been disabled.
...
When the System Does Not Seem To Work Properly
The RVC system might not work properly or display a clear image if:
The RVC is turned off. See “Turning the RVC System On or Off” earlier
in this section.
It is dark.
The sun or the beam ...
