Infiniti QX: Exterior front - Illustrated table of contents - Infiniti QX Owner's ManualInfiniti QX: Exterior front

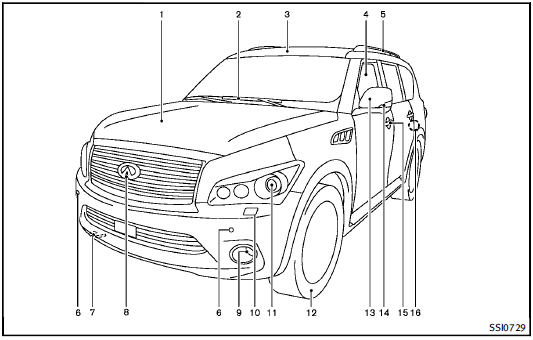

1. Hood (P.3-18)

1. Hood (P.3-18)
2. Windshield wiper and washer
— Switch operation (P.2-33)
— Rain-sensing auto wiper system (P.2-34)
— Wiper blade replacement (P.8-20)
— Window washer fluid (P.8-15)
— Windshield wiper deicer (P.2-36)
3. Moonroof (P.2-63)
4. Power windows (P.2-61)
5. Roof rack (P.2-60)
6. Front Sensor
— Around View Monitor (P.4-21)
7. Recovery hook (P.6-17)
8. Front view camera (P.4-21)
9. Fog light (P.2-43)
10. Headlight washers (P.2-41)
11. Headlight and turn signal (P.2-37)
— Bulb replacement (P.8-27)
— Adaptive Front lighting System (AFS) (P.2-41)
12. Tires
— Wheel and tires (P.8-30, P.9-9)
— Flat tire (P.6-2)
— Tire pressure monitoring system (TPMS) (P.2-15, P.5-4)
13. Outside mirrors (P.3-28)
— Side view camera (P.4-21)
— Welcome light (P.2-65)
14. Side turn signal lights (bulb replacement) (P.8-27)
15. Doors
— Keys (P.3-2)
— Door locks (P.3-4)
— Intelligent Key system (P.3-6)
— Remote keyless entry system (P.3-15)
16. Child safety rear door locks (P.3-6)
