Infiniti QX: Exterior rear - Illustrated table of contents - Infiniti QX Owner's ManualInfiniti QX: Exterior rear

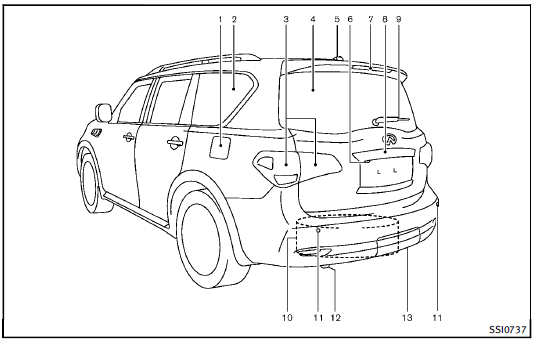

1. Fuel-filler door (P.3-23)

1. Fuel-filler door (P.3-23)
— Fuel recommendation (P.9-4)
2. Antenna (P.4-80)
3. Rear combination light (bulb replacement) (P.8-27)
4. Rear window defroster (P.2-36)
5. Satellite antenna (P.4-41)
6. Rear view camera (P.4-21)
7. High-mounted stop light (bulb replacement) (P.8-27)
8. Lift gate (P.3-18)
— Intelligent Key system (P.3-6)
9. Rear window wiper and washer
— Switch operation (P.2-35)
— Window washer fluid (P.8-15)
10. Spare tire (under the vehicle) (P.6-2)
11. Rear Sensor
— Around View Monitor (P.4-21)
12. Recovery hook (P.6-17)
13. Trailer hitch (P.9-22)
