Mercedes-Benz GL-Class: Replacing the windshield wiper blades - Replacing the wiper blades - Replacing bulbs - Lights and windshield wipers - Mercedes-Benz GL-Class Owner's ManualMercedes-Benz GL-Class: Replacing the windshield wiper blades

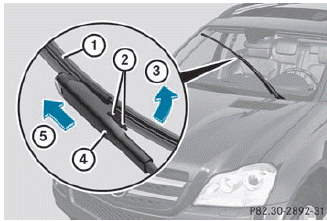

Removing the wiper blades

Remove the SmartKey from the ignition lock.
Fold the wiper arm away from the windshield.

► Press both release clips 2.

Press both release clips 2.
Fold wiper blade 1 in the direction of arrow 3 away from wiper arm 4.
Remove wiper blade 1 in the direction of arrow 5.

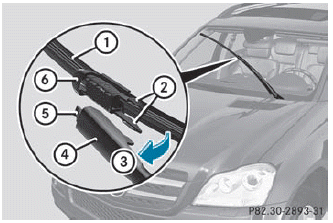

Installing the wiper blades

► Position the new wiper blade 1 with

Position the new wiper blade 1 with recess 6 on lug 5.
Fold wiper blade 1 in the direction of arrow 3 onto the wiper arm, until retaining clips 2 engage in bracket 4.
Make sure that wiper blade 1 is seated correctly.
Fold the wiper arm back onto the windshield.

    Important safety notes
    WARNING   For safety reasons, switch off the windshield wipers and remove the key from the ignition lock before changing the wiper blades (vehicles with KEYLESS-GO: make sure that the o ...

    Replacing the rear window wiper blade
    Removing the wiper blade ► Remove the SmartKey from the ignition lock. ► Fold wiper arm 1 away from the rear window until it engages. ► Position wiper blade 2 at a right angle ...
