Range Rover: Operating the jack - Wheel changing - Range Rover Owner's ManualRange Rover: Operating the jack

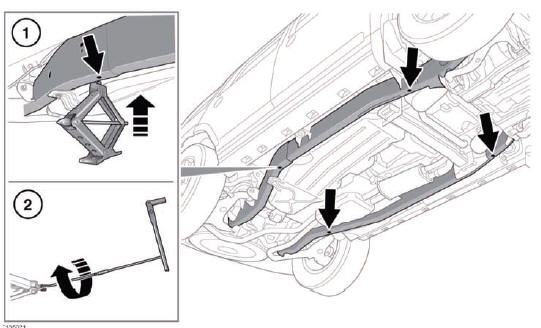

1. Locate the jack under the recommended jacking point.

1. Locate the jack under the recommended jacking point.

2. Attach the cranking lever to the jack using the adaptor. Fit the wheel nut brace to the end of the cranking lever and rotate clockwise to raise the vehicle.
