Mercedes-Benz GL-Class: Inserting the cargo tie down rings intothe mounting

WARNING
Distribute the load on the cargo tie down rings
evenly. Please observe the loading guidelines.
► Turn mounting element 2 in the loading
rail to
.

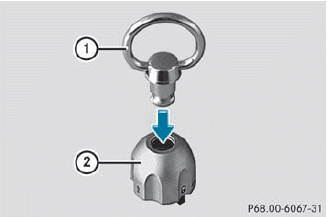

► Insert cargo tie-down ring 1 into mounting
element 2.
► Turn mounting element 2 to
until
you feel it clearly engage in the loading rail.
Inserting the mounting elements intothe loading rail
You can slide mounting element 2 in loading
rail 1 to various detents and secure it. These
detents are marked and positioned at 5-cm
intervals along loading rail 1.
You can turn mounting eleme ...
Seat belt retractor
The inertia reel can be used to secure light
loads against the side wall of the cargo
compartment to prevent them from moving
around.
► Insert two mounting elements 2 into a
loading rai ...
