Cadillac Escalade: Engine Compartment Overview - Vehicle Checks - Vehicle Care - Cadillac Escalade Owner's ManualCadillac Escalade: Engine Compartment Overview

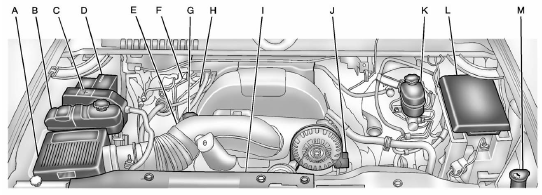

6.2L V8 Engine

A. Engine Air Cleaner/Filter  .

A. Engine Air Cleaner/Filter  .
B. Coolant Surge Tank and Pressure Cap. See Cooling System  .
C. Remote Positive (+) Terminal. See Jump Starting  .
D. Battery  .
E. Remote Negative (−) Terminal (Out of View). See Jump Starting  .
F. Automatic Transmission Dipstick (Out of View). See “Checking the Fluid Level” under Automatic Transmission Fluid  .
G. Engine Oil Fill Cap. See “When to Add Engine Oil” under Engine Oil  .
H. Engine Oil Dipstick (Out of View). See “Checking Engine Oil” under Engine Oil  .
I. Engine Cooling Fans (Out of View). See Cooling System  .
J. Power Steering Fluid Reservoir. See Power Steering Fluid  .
K. Brake Master Cylinder Reservoir. See “Brake Fluid” under Brake Fluid  .
L. Engine Compartment Fuse Block  .
M. Windshield Washer Fluid Reservoir. See “Adding Washer Fluid” under Washer Fluid  .

If the vehicle is a hybrid, see the hybrid supplement for more information.
