Cadillac Escalade: Engine Compartment Fuse Block - Electrical System - Vehicle Care - Cadillac Escalade Owner's ManualCadillac Escalade: Engine Compartment Fuse Block

The Engine Compartment Fuse Block is located in the engine compartment, on the

The Engine Compartment Fuse Block is located in the engine compartment, on the driver side of the vehicle. Lift the cover for access to the fuse/relay block.

If the vehicle is a hybrid, see the hybrid supplement for more information.

Notice: Spilling liquid on any electrical component on the vehicle may damage it. Always keep the covers on any electrical component.

To remove fuses, hold the end of the fuse between your thumb and index finger and pull straight out.

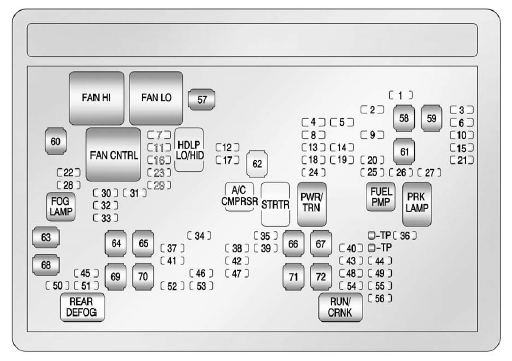

The vehicle may not be equipped with all of the fuses, relays, and features shown.

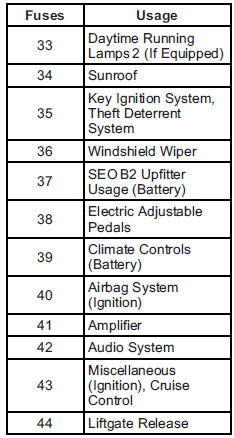

The vehicle may not be equipped with all of the fuses, relays, and features shown.

Instrument Panel Fuse Block

    Fuses and Circuit Breakers
    If the vehicle is a hybrid, see the hybrid supplement for more information. The wiring circuits in the vehicle are protected from short circuits by a combination of fuses, circuit breakers and fusib ...

    Instrument Panel Fuse Block
    The instrument panel fuse block access door is located on the driver side edge of the instrument panel. Pull off the cover to access the fuse block. The vehicle may not be equipped with all of ...
