Cadillac Escalade: Instrument Panel Fuse Block - Electrical System - Vehicle Care - Cadillac Escalade Owner's ManualCadillac Escalade: Instrument Panel Fuse Block

The instrument panel fuse block access door is located on the driver side edge

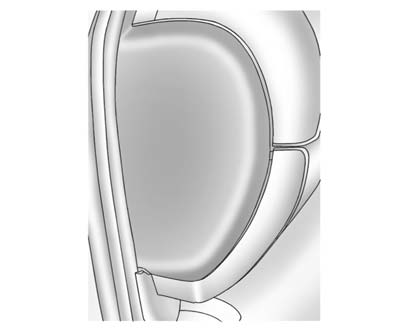

The instrument panel fuse block access door is located on the driver side edge of the instrument panel.

Pull off the cover to access the fuse block.

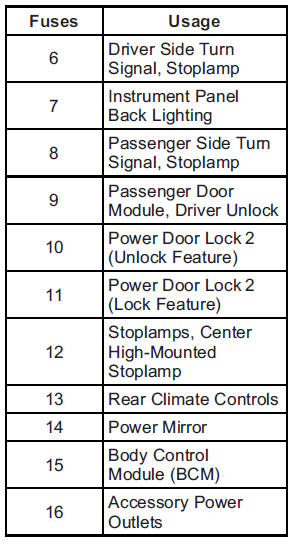

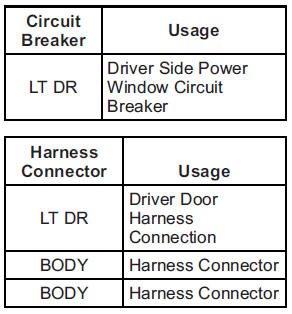

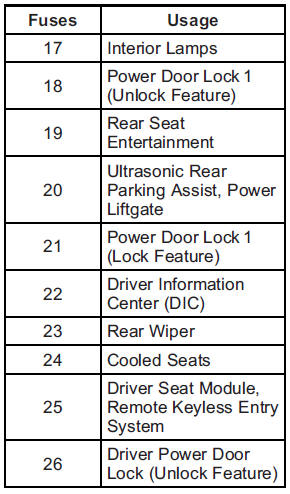

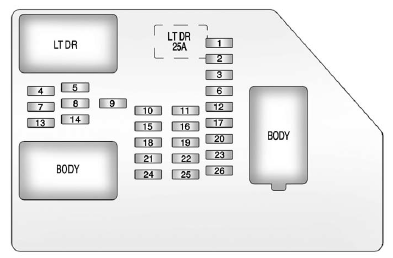

The vehicle may not be equipped with all of the fuses, relays, and features shown.

The vehicle may not be equipped with all of the fuses, relays, and features shown.

Center Instrument Panel Fuse Block

Engine Compartment Fuse Block
The Engine Compartment Fuse Block is located in the engine compartment, on the driver side of the vehicle. Lift the cover for access to the fuse/relay block. If the vehicle is a hybrid, see the hy ...

Center Instrument Panel Fuse Block
The center instrument panel fuse block is located underneath the instrument panel, to the left of the steering column. ...
