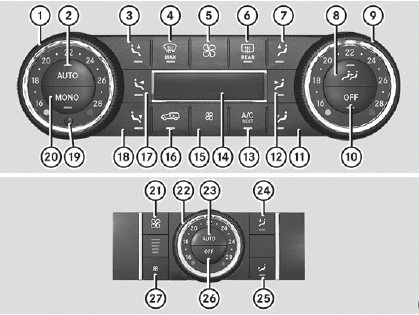

Canada only

Canada only

Front control panel

1 To set the temperature, left
2 To set climate control to automatic
3 To direct the airflow through the defroster vents, left
4 To defrost the windshield
5 To increase the airflow
6 To switch the rear window defroster on/off
7 To direct the airflow through the defroster vents, right
8 To operate the rear-compartment climate control via the front control panel
9 To set the temperature, right
10 To switch climate control on/off
11 To direct the airflow to the footwells and side air vents, right
12 To direct the airflow through the center and side air vents, right
13 To activate/deactivate cooling with air dehumidification
To activate/deactivate the residual heat function
14 Display
15 To reduce the airflow
16 To activate/deactivate air-recirculation mode
17 To direct the airflow through the center and side air vents, left
18 To direct the airflow to the footwells and side air vents, left
19 Interior temperature sensor
20 To switch the MONO function on/off

Rear control panel

21 To increase the airflow
22 To set the temperature
23 To set the rear-compartment climate control to automatic
24 To direct the airflow through the rear air vents
25 To direct the airflow through the footwell vents()
26 To switch rear-compartment climate control on/off
27 To reduce the airflow

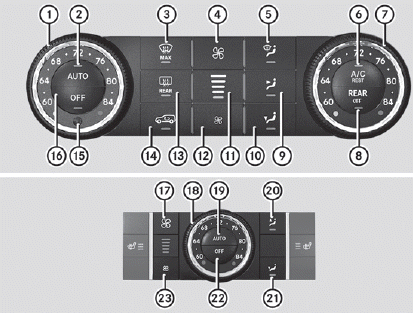

USA only

USA only

Front control panel

1 To set the temperature, left
2 To set climate control to automatic
3 To defrost the windshield
4 To increase the airflow
5 To direct the airflow through the defroster vents
6 To activate/deactivate cooling with air dehumidification
To activate/deactivate the residual heat function
7 To set the temperature, right
8 To switch rear-compartment climate control on/off
9 To direct the airflow through the center and side air vents
10 To direct the airflow to the footwells and side air vents
11 To display the airflow level
12 To reduce the airflow
13 To switch the rear window defroster on/off
14 To activate/deactivate air-recirculation mode
15 Interior temperature sensor
16 To switch climate control on/off

Rear control panel

17 To increase the airflow
18 To set the temperature
19 To set the rear-compartment climate control to automatic
20 To direct the airflow through the rear air vents
21 To direct the airflow through the footwell vents
22 To switch rear-compartment climate control on/off
23 To reduce the airflow
