Cadillac Escalade: Storing a Flat or Spare Tire and Tools - Tire Changing - Wheels and Tires - Vehicle Care - Cadillac Escalade Owner's ManualCadillac Escalade: Storing a Flat or Spare Tire and Tools

Storing a jack, a tire, or other equipment in the passenger compartment of the vehicle could cause injury. In a sudden stop or collision, loose equipment could strike someone. Store all these in the proper place.

Notice: Storing an aluminum wheel with a flat tire under your vehicle for an extended period of time or with the valve stem pointing up can damage the wheel. Always stow the wheel with the valve stem pointing down and have the wheel/tire repaired as soon as possible.

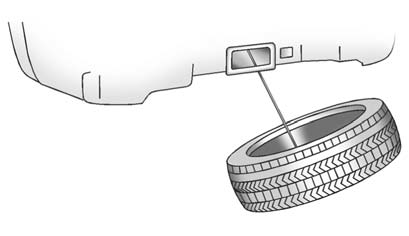

Store the tire under the rear of the vehicle in the spare tire carrier.

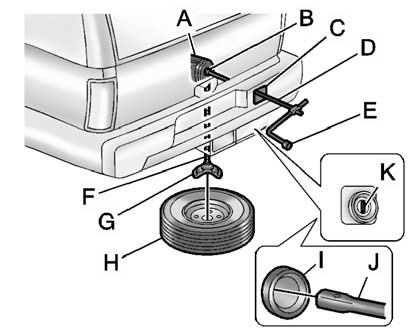

A. Hoist Assembly

A. Hoist Assembly
B. Hoist Shaft
C. Hoist Shaft Access Cover/Hole
D. Jack Handle Extensions
E. Wheel Wrench
F. Hoist Cable
G. Tire/Wheel Retainer
H. Spare Tire/Flat Tire (Valve Stem Pointed Down)
I. Hoist Shaft Access Hole
J. Hoist End of Extension Tool
K. Spare Tire Lock

1. Put the tire (H) on the ground at the rear of the vehicle with the valve stem pointed down and to the rear.

2. Tilt the tire toward the vehicle. Separate the tire/wheel retainer from the

2. Tilt the tire toward the vehicle. Separate the tire/wheel retainer from the guide pin. Pull the pin through the center of the wheel. Tilt the retainer down and through the center wheel opening.

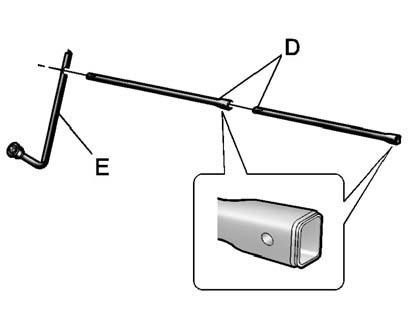

3. Assemble the two jack handle extensions (D) and wheel wrench (E), as shown.

3. Assemble the two jack handle extensions (D) and wheel wrench (E), as shown.

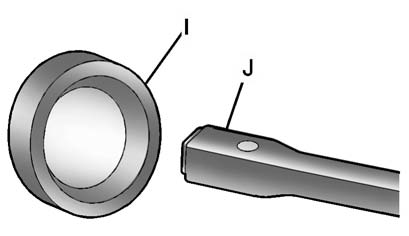

4. Insert the open end of the extension (J) through the hole in the rear bumper

4. Insert the open end of the extension (J) through the hole in the rear bumper (I) (hoist shaft access hole).

5. Raise the tire part way upward. Make sure the retainer is fully seated across the underside of the wheel and centered in the wheel opening.

6. Raise the tire fully against the underside of the vehicle by turning the wheel wrench clockwise until you hear two clicks or feel it skip twice. You cannot overtighten the cable.

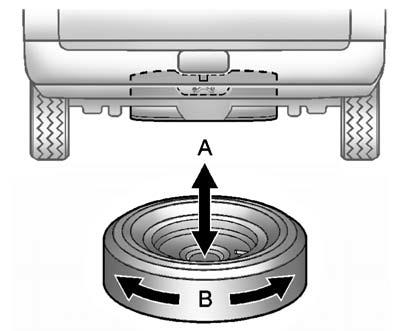

7. Make sure the tire is stored securely. Push, pull (A), and then try to turn

7. Make sure the tire is stored securely. Push, pull (A), and then try to turn (B) the tire. If the tire moves, use the wheel wrench to tighten the cable.

8. Reinstall the spare tire lock.

9. Reinstall the hoist shaft access cover.

10. Reinstall the hitch cover.

To store the tools:

A. Wheel Blocks

A. Wheel Blocks
B. Tool Bag
C. Retaining Bracket
D. Wing Nut Retaining Tool Bag
E. Jack
F. Wing Nut Retaining Wheel Blocks
G. Jack Knob

1. Return the tools (wheel wrench, jack handle, and jack handle extensions) to the tool bag (B).

2. Assemble wheel blocks (A) and jack (E) together with the wing nut retaining the wheel blocks (F).

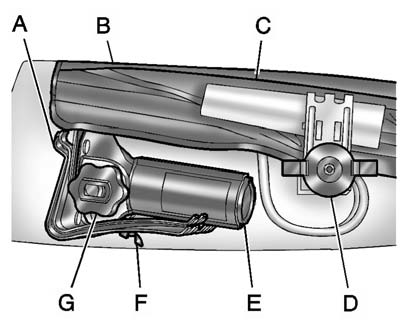

3. Position the jack (E) and wheel blocks (A) in the driver side trim panel over the wheelhouse.

4. Turn the jack knob (G) clockwise until the jack is secured tight in the mounting bracket. Be sure to position the holes in the base of the jack onto the pin in the mounting bracket.

5. Use the retaining bracket (C) to fasten the tool bag (B) on the stud and turn the wing nut retaining the tool bag (D) clockwise to secure.

Regular Wheelbase shown, Extended Wheelbase similar.

Regular Wheelbase shown, Extended Wheelbase similar.

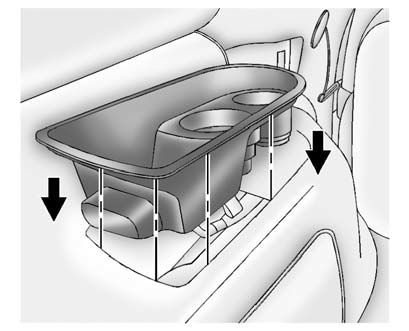

6. Return the storage tray to its original stored position.

    Removing the Flat Tire and Installing the Spare Tire
    1. Do a safety check before proceeding. See If a Tire Goes Flat   for more information. 2. To remove the center cap, place the chiseled end of the wheel wrench in the slot on the wheel an ...

    Secondary Latch System

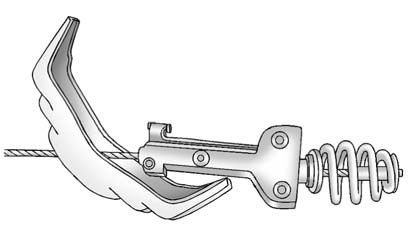

    This vehicle has an underbody-mounted tire hoist assembly equipped with a secondary latch system. It is designed to stop the spare tire from suddenly falling off your vehicle. For the secondary latc ...
