Range Rover: Remote operation - Air suspension - Range Rover Owner's ManualRange Rover: Remote operation

WARNING WARNING

The Smart Key can be operated from inside or outside the vehicle. It is therefore important that it is kept out of the reach of children at all times.

WARNING WARNING

When operating the Smart Key from inside the vehicle, make sure that an adult checks for obstructions under the vehicle and supervises the raising or lowering process.

NOTICE NOTICE

Care should be taken with all height changes when a trailer is attached to the vehicle.

The buttons on the Smart Key may be used to operate the air suspension system, allowing the vehicle to be raised or lowered remotely. This may be useful in attaching a trailer or loading the vehicle.

To change the suspension height using the Smart Key, the vehicle must be stationary, all the doors closed and the hazard warning lamps switched on.

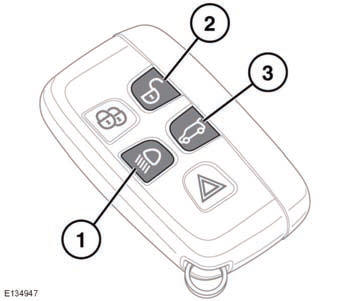

To raise the vehicle press and hold button (1), then press and hold button (2).

To raise the vehicle press and hold button (1), then press and hold button (2).

To lower the vehicle press and hold button (1), then press and hold button (3)

If the starting height is above or below normal height, movement will cease when normal height is reached. Release the Smart Key buttons and press again to continue.

    Crawl mode (locked access height)
    When the vehicle is at Normal height and traveling less than 22 mph (35 km/h), or at Access height, press down on the raise/lower switch for longer than 3 seconds to lock the vehicle at access hei ...

    Dynamic response
    The dynamic response system adjusts the suspension to eliminate or reduce body roll while cornering on-road, and to provide greater axle articulation and improved traction when driving off-road. ...
