Cadillac Escalade: Rear Wiper Blade Replacement - Wiper Blade Replacement - Vehicle Checks - Vehicle Care - Cadillac Escalade Owner's ManualCadillac Escalade: Rear Wiper Blade Replacement

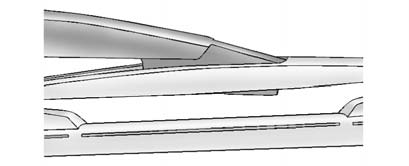

1. Lift the wiper blade assembly up and out of the park rest position.

2. Pull the wiper blade assembly away from the backglass. The backglass wiper

2. Pull the wiper blade assembly away from the backglass. The backglass wiper blade will not lock in a vertical position, so care should be used when pulling it away from the vehicle.

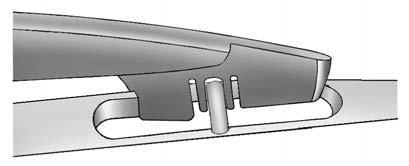

3. Turn the wiper blade assembly, and pull it off of the wiper arm. Hold the wiper arm in position and push the blade away from the wiper arm.

4. Replace the wiper blade.

4. Replace the wiper blade.

5. Return the wiper blade assembly to the park rest position.
