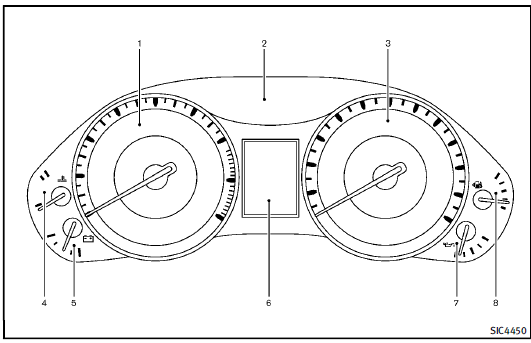

1. Tachometer (P.2-8)

1. Tachometer (P.2-8)
2. Warning/Indicator lights (P.2-11)
3. Speedometer (P.2-7)
4. Engine coolant temperature gauge (P.2-8)
5. Voltmeter (P.2-10)
6. Dot matrix liquid crystal display/ Odometer/twin trip odometer (P.2-22)
7. Engine oil pressure gauge (P.2-9)
8. Fuel gauge (P.2-9)
