Range Rover: License plate lamp bulb replacement - Maintenance - Range Rover Owner's ManualRange Rover: License plate lamp bulb replacement

Range Rover / Range Rover Owner's Manual / Maintenance / License plate lamp bulb replacement

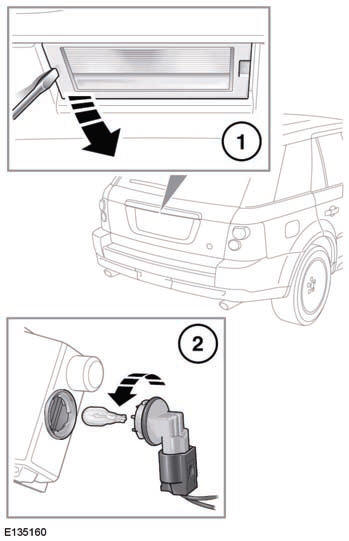

1. Using a small flat-bladed screwdriver, carefully prize the lamp from the tailgate.

1. Using a small flat-bladed screwdriver, carefully prize the lamp from the tailgate.

2. Twist the bulb holder counter-clockwise to unlock then pull to remove. Pull out the bulb to remove.
