Cadillac Escalade: Remote Control - Rear Seat Entertainment (RSE) System (Overhead) - Rear Seat Infotainment - Infotainment System - Cadillac Escalade Owner's ManualCadillac Escalade: Remote Control

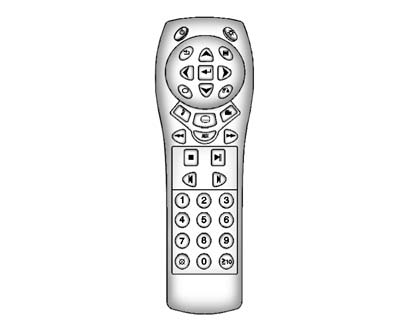

To use the remote control, aim it at the transmitter window at the rear of the

To use the remote control, aim it at the transmitter window at the rear of the RSE overhead console and press the desired button. Direct sunlight or very bright light could affect the ability of the RSE transmitter to receive signals from the remote control. If the remote control does not seem to be working, the batteries might need to be replaced. See “Battery Replacement” later in this section. Objects blocking the line of sight could also affect the function of the remote control.

If a CD or DVD is in the Radio DVD slot, the remote control on the video screen display and start the disc. The radio can also turn on the video (power) button can be used to turn on the video screen display and start the disc. The radio can also turn on the video screen display. See CD/DVD Player   for more information.

Notice: Storing the remote control in a hot area or in direct sunlight can damage it, and the repairs will not be covered by the warranty. Storage in extreme cold can weaken the batteries. Keep the remote control stored in a cool, dry place.

If the remote control becomes lost or damaged, a new universal remote control can be purchased. If this happens, make sure the universal remote control uses a code set of Toshiba®.

    Video Screen(s)
    The video screen(s) are located in the overhead console. To use the video screen(s): 1. Push the release button located on the overhead console. 2. Move the screen to the desired position. When th ...

    Remote Control Buttons
    (Power): Press this button to turn the video screen on and off. (Illumination): Press this button to turn the remote control backlight on. The backlight automatically times out after 7 to 10 sec ...
