Infiniti QX: Instrument panel - Instruments and controls - Infiniti QX Owner's ManualInfiniti QX: Instrument panel

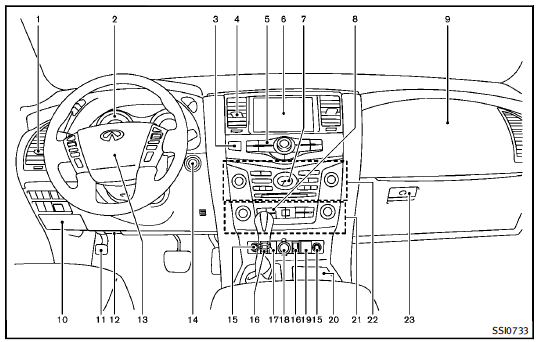

1. Side ventilator

1. Side ventilator
2. Meters and gauges
3. Hazard indicator flasher switch
4. Center ventilator
5. Center multi-function control panel
— Vehicle information and setting buttons
6. Center display
— Around View Monitor
— Navigation system
— DVD player operation
7. Clock
8. Defroster switch/Deicer switch
9. Front passenger supplemental air bag
10. Fuse box
11. Parking brake
12. Hood release handle
13. Steering wheel
— Horn
— Driver supplemental air bag
— Power steering system
14. Push-button ignition switch
15. Climate controlled seat switch/ Heated seat switch
16. Remote tip-up 2nd row seat switch
17. Heated steering wheel switch
18. Power outlet
19. Front passenger air bag status light
20. Cup holder
21. Automatic air conditioning system
22. Audio system
23. Glove box
: if so equipped
: Refer to the separate Navigation System Owner’s Manual.
