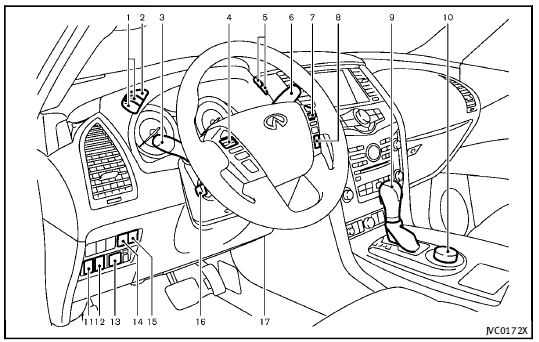

Infiniti QX: Cockpit
1. Instrument brightness control switch
2. TRIP/RESET switch for twin trip odometer
3. Headlight, fog light and turn signal
switch
— Headlight
— Turn signal
— Fog light
4. Steering-wheel-mounted controls (left
side)
— Audio control steering switch
— Hands-Free Phone System switch
5. Trip computer switch
6. Wiper and washer switch
7. Steering-wheel-mounted controls
(right side)
— Cruise control system
— Intelligent Cruise Control (ICC) system
8. Dynamic driver assistance switch
— Lane Departure Prevention (LDP) system
— Distance Control Assist (DCA) system
— Blind Spot Intervention system
9. Selector lever
10. Four-Wheel Drive (4WD) shift switch/SNOW mode switch/TOW MODE
switch/Vehicle Dynamic Control
(VDC) OFF switch
11. Headlight aiming control
12. Power lift gate main switch
13. Outside rearview mirror remote control
switch
14. Warning systems switch
— Lane Departure Warning (LDW)
— Blind Spot Warning (BSW)
— Forward Collision Warning (FCW)
15. Power lift gate switch
16. Electric tilting/telescopic steering
wheel switch
17. Intelligent Brake Assist (IBA) OFF switch
Instrument panel
1. Side ventilator
2. Meters and gauges
3. Hazard indicator flasher switch
4. Center ventilator
5. Center multi-function control panel
— Vehicle information and setting
buttons
6. Ce ...
