Buick Enclave: Engine Cover - Vehicle Checks - Vehicle Care - Buick Enclave Owner's ManualBuick Enclave: Engine Cover

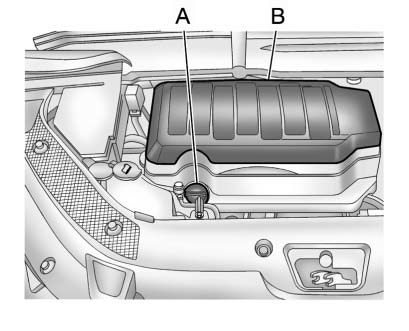

A. Oil Fill Cap

A. Oil Fill Cap
B. Engine Cover

To remove:

1. Remove the oil fill cap (A).
2. Raise the engine cover (B) to release it from the retainers.
3. Lift and remove the engine cover.
4. Reverse Steps 1 through 3 to reinstall engine cover.
