Infiniti QX: Drive belts - Maintenance and do-it-yourself - Infiniti QX Owner's ManualInfiniti QX: Drive belts

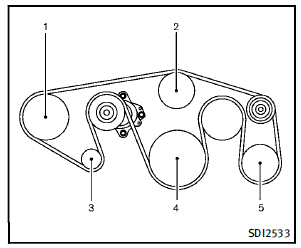

1. Power steering fluid pump

1. Power steering fluid pump
2. Water pump
3. Alternator
4. Crankshaft pulley
5. Air conditioner compressor

Be sure the ignition switch is in the OFF or WARNING
Be sure the ignition switch is in the OFF or LOCK position before servicing drive belts. The engine could rotate unexpectedly.

1. Visually inspect each belt for signs of unusual wear, cuts, fraying or looseness. If the belt is in poor condition or loose, have it replaced or adjusted by an INFINITI retailer. 2. Have the belts checked regularly for condition and tension in accordance with the maintenance schedule in your “INFINITI Service and Maintenance Guide”.
