Cadillac Escalade: Back-Up Lamps - Bulb Replacement - Vehicle Care - Cadillac Escalade Owner's ManualCadillac Escalade: Back-Up Lamps

To replace this bulb:

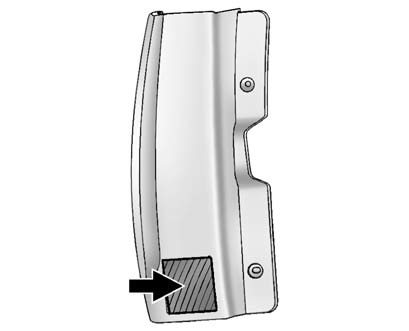

1. Open the liftgate. See Liftgate   for more information.

1. Open the liftgate. See Liftgate   for more information.

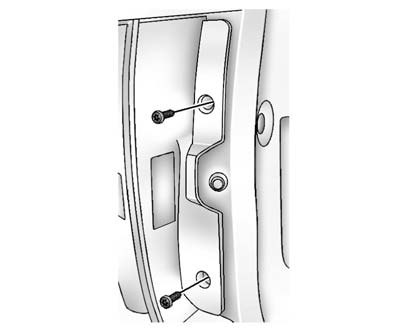

2. Remove the two screws from the taillamp assembly.

2. Remove the two screws from the taillamp assembly.

3. Pull the taillamp assembly rearward until the inner pins on the taillamp assembly disengage from the vehicle.

4. Press the release tab, if the bulb socket has one, and turn the socket counterclockwise to remove it from the taillamp assembly.

5. Pull the old bulb straight out from the socket.

6. Press a new bulb into the socket, insert the socket into the taillamp assembly and turn the socket clockwise into the taillamp assembly until it clicks.

7. Reinstall the taillamp assembly. When reinstalling, make sure to line up the pins on the taillamp assembly with the vehicle. If the pins do not line up correctly, the taillamp assembly will not be able to be installed properly.

If the taillamp, stoplamp, or turn signal need to be replaced, see your dealer for service.

    LED Lighting
    The vehicle may have LED headlamps. For replacement of the LED lighting assembly contact your dealer. ...

    License Plate Lamp
    1. Remove the two screws holding each of the license plate lamps to the molding that is part of the liftgate. 2. Twist and pull the license plate lamp assembly forward through the molding opening ...
