Mercedes-Benz GL-Class: Adjusting the multicontour seat
You can adjust the contour of the front seats individually so as to provide optimum support for your back and sides.
► Make sure that the SmartKey is in
position
2 in the ignition lock.

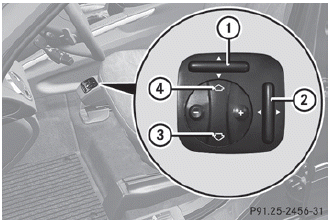

► Use switch 1 to move the thigh cushion
into the desired position.
► Press the
button to adjust the
contour of the backrest to suit your back.
► Press button 4 to move the point of
greatest backrest curvature downwards to
the lumbar region and press button 3 to
move it upwards to the upper back region.
► Use button 2 to adjust the side bolsters
for optimum lateral support.
EASY-ENTRY/EXIT feature (third rowof seats)
Important safety notes
WARNING
To help avoid personal injury, the second-row
seat backrests must be properly locked either
in the upright position or, when using the
expanded cargo vo ...
Adjusting the four-way lumbarsupport
You can adjust the contour of the driver's seat
backrests individually to provide optimum
support for your back.
1 To raise the backrest contour
2 To soften the backrest contour
3 To lower the ...
