Range Rover: Xenon headlamp bulb replacement - Maintenance - Range Rover Owner's ManualRange Rover: Xenon headlamp bulb replacement

Range Rover / Range Rover Owner's Manual / Maintenance / Xenon headlamp bulb replacement

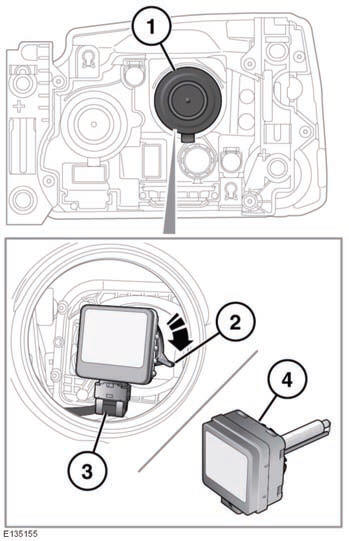

1. Twist and lift off the domed cap.

1. Twist and lift off the domed cap.

2. Rotate the collar securing the bulb to the lamp and release the bulb.

3. Pull off the electrical connector and remove the bulb unit.

4. Insert the new bulb unit and reverse the above procedure. Ensure that the lugs on the cap are in contact with the bulb base.
