Mercedes-Benz GL-Class: Warning and indicator lamps - Instrument cluster - At a glance - Mercedes-Benz GL-Class Owner's ManualMercedes-Benz GL-Class: Warning and indicator lamps

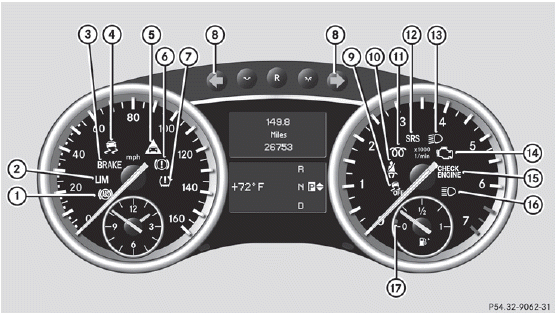

1 ABS

1 ABS
2 The lamp lights up briefly, but has no function.
3 Brakes (USA only)
4 ESP®
5 Distance warning signal
On vehicles without DISTRONIC, the lamp lights up briefly but has no function.
6 Brakes (Canada only)
7 Tire pressure monitor (USA only)
8 Turn signal
9 ESP® OFF
10 Seat belt
11 Diesel engine: preglow
12 SRS
13 Low-beam headlamps
14 Check Engine (Canada only)
15 Check Engine (USA only)
16 High-beam headlamps
17 Reserve fuel
