Mercedes-Benz GL-Class: Displays and controls

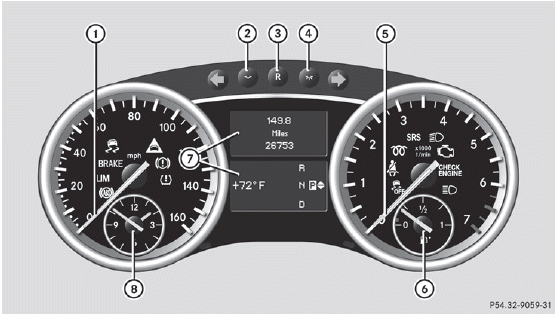

1 Speedometer with
segments
2 Adjusts the instrument
cluster lighting: dimmer
3 Reset button
4 Adjusts the instrument
cluster lighting: brighter
5 Tachometer
6 Fuel gauge
7 Multifunction display
8 Clock
Warning and indicator lamps
1 ABS
2 The lamp lights up briefly,
but has no function.
3 Brakes (USA only)
4 ESP®
5 Distance warning signal
On vehicles without
DISTRONIC, the lamp lights
up briefly but has no
funct ...
