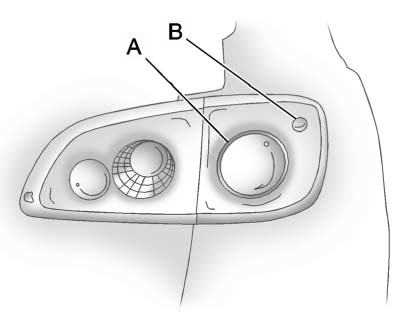

A. Taillamp

A. Taillamp
B. Sidemarker Lamp

To replace one of these bulbs:

1. Open the liftgate. See Liftgate .
2. Remove the black cuff from the lamp assembly by pulling rearward from the top to unfasten it from the snap tabs.
3. Remove the two hex nuts holding the taillamp assembly in place.
4. Pull out the taillamp assembly.
5. Turn the bulb socket counterclockwise and pull it straight out to remove it.
6. Replace the bulb.
7. Reverse Steps 3 through 5 to reinstall the taillamp assembly.

When reinstalling the taillamp assembly, the pin on the taillamp assembly must line up and be inserted correctly into the opening.
8. Replace the black cuff over the lamp assembly by pushing it into the snap tabs.
