Cadillac Escalade: Storing the Tire Sealant and Compressor Kit - Wheels and Tires - Vehicle Care - Cadillac Escalade Owner's ManualCadillac Escalade: Storing the Tire Sealant and Compressor Kit

Cadillac Escalade / Cadillac Escalade Owner's Manual / Vehicle Care / Wheels and Tires / Storing the Tire Sealant and Compressor Kit

The tire sealant and compressor kit is located under the storage tray on the driver side trim panel (over the rear wheelhouse).

To access the tire sealant and compressor kit:

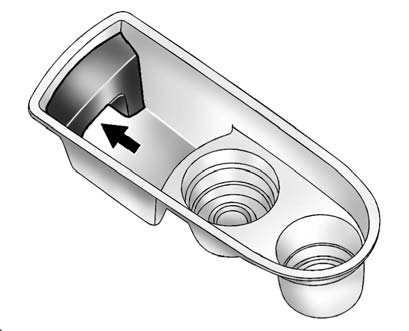

1. Remove the tray by pulling up on the finger depression to access the tire

1. Remove the tray by pulling up on the finger depression to access the tire sealant and compressor kit.

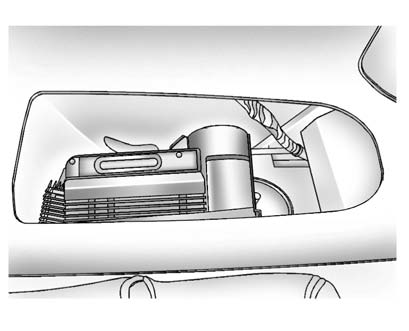

2. Locate the tire sealant and compressor kit.

2. Locate the tire sealant and compressor kit.

3. Remove the sealant and compressor kit by pulling the velcro strip up and back.

4. Remove the sealant and compressor kit from its plastic tray assembly.

To store the tire sealant and compressor kit, reverse the steps.

    Removal and Installation of the Sealant Canister
    To remove the sealant canister: 1. Unlock the air only hose (F) from the tire sealant canister (B) by pulling up on the lever. 2. Pull the air only hose (F) from the tire sealant canister (B). 3 ...
