Infiniti QX: Operating tips

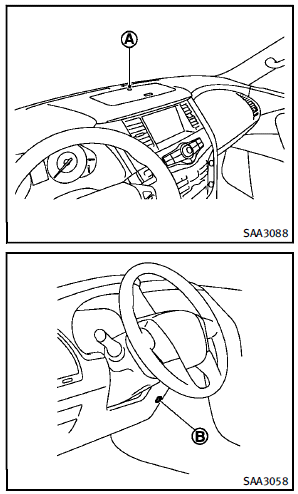

When the engine coolant temperature and outside air temperature are low, the air flow from the foot outlets may not operate. However, this is not a malfunction. After the coolant temperature warms up, the air flow from the foot outlets will operate normally. The sensors A and B located on the instrument panel help maintain a constant temperature. Do not put anything on or around the sensors.
Automatic climate control
Automatic operation
Cooling and/or dehumidified heating
(AUTO):
This mode may be used all year round. The
system works automatically to control the
inside temperature, air flow distribution
...
Linking intelligent key
The Climate control system settings can be
memorized for each Intelligent Key. For
more details, see “Setting memory function”
in the “3. Pre-driving checks and
adjustments” section. ...
