Tire data is vehicle-specific and may

deviate from the data in the example. Tire data is vehicle-specific and may deviate from the data in the example.

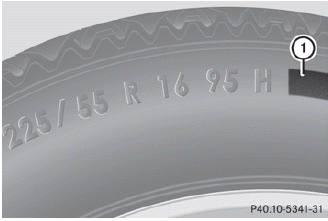

In addition to the load bearing index, load index 1 may be imprinted after the letters that identify speed index 6 on the sidewall of the tire.

• If no specification is given: no text (as in the example above), represents a standard load (SL) tire
• XL or Extra Load: represents a reinforced tire
• Light load: represents a light load tire
• C, D, E: represents a load range that depends on the maximum load that the tire can carry at a certain pressure
