Mercedes-Benz GL-Class: LATCH-type (ISOFIX) child seat anchorsin the rear
WARNING
Children that are too large for a child restraint
must travel in seats using normal seat belts.
Position shoulder belt across the chest and
shoulder, not face or neck.
In order to attain the correct seating position
for children weighing over 41 lb (18 kg), it may
be necessary to use a booster seat until they
reach a height where a normal lap/shoulder
seat belt lies properly across their bodies
without the need for a booster seat.
Install the child restraint system according to
the manufacturer's instructions.
The child restraint system must be installed
firmly on both brackets.
An incorrectly installed child restraint system
can come loose in the event of an accident,
causing the child to be severely or fatally
injured.
Child restraint systems/child restraint
retaining brackets that are damaged or have
suffered damage due to an impact must be
replaced.
LATCH-type (ISOFIX) is a standardized securing system for specially designed child restraint systems on the rear seats.
Securing rings for two LATCH-type (ISOFIX) child restraint systems are installed on the left and right:
• on the rear seat backrests of the outer
seats in the second row
• on the backrests of the seats in the third
row of seats
Secure non LATCH-type (ISOFIX) child restraint systems using the vehicle's seat belt system. Always install child restraint systems according to the manufacturer's instructions.
When installing the child restraint system,
make sure that the seat belt for the center
seat does not get trapped. Otherwise, the
seat belt could be damaged.

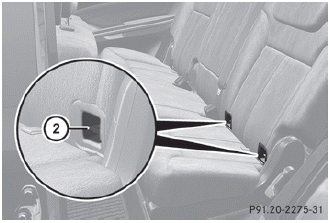

► Remove covers 1.
2 Securing rings
► Install the LATCH-type (ISOFIX) child restraint system. Comply with the manufacturer's instructions when doing so.
