Mercedes-Benz GL-Class: Jump-starting - Breakdown assistance - Mercedes-Benz GL-Class Owner's ManualMercedes-Benz GL-Class: Jump-starting

WARNING Failure to follow these directions will cause damage to the electronic
Failure to follow these directions will cause damage to the electronic components, and can lead to a battery explosion and severe injury or death.
Never lean over batteries while connecting or jump starting. You might get injured.
Battery fluid contains sulfuric acid. Do not allow this fluid to come in contact with eyes, skin or clothing. In case it does, immediately flush affected area with water, and seek medical help if necessary.
A battery will also produce hydrogen gas, which is flammable and explosive. Keep flames or sparks away from battery, avoid improper connection of jumper cables, smoking, etc.
Attempting to jump start a frozen battery can result in it exploding, causing personal injury.
Read all instructions before proceeding.

may Avoid repeated and lengthy starting attempts. Otherwise, non-combusted fuel may damage the catalytic converter38 and create a risk of fire.

Do not use a rapid-charging device to start the engine.

Make sure the jumper cables are not damaged.

Make sure the jumper cables are not touching any other metal objects when they are connected to the battery.

If your vehicle's battery is discharged, the engine can be jump-started from another vehicle or from a second battery using jumper cables.

Observe the following points:

The battery is not accessible in all vehicles. If the other vehicle's battery is not accessible, jump-start the vehicle using a second battery or a jump-starting device.
Only jump-start the vehicle when the engine is cold and the catalytic converter system has cooled down.
Do not start the engine if the battery is frozen. Let the battery thaw first.
Jump-starting may only be performed from batteries with a nominal voltage of 12 V.
Only use jumper cables which have a sufficient cross-section and insulated terminal clamps.
Make sure that the jumper cables cannot come into contact with parts, such as the pulley or the fan. These parts move when the engine is started and while it is running.
If the battery is fully discharged, leave the battery that is being used to jump-start connected for a few minutes before attempting to start. This charges the empty battery a little.

from any Jumper cables and further information about jump-starting can be obtained from any authorized Mercedes-Benz Center, for example.

Make sure that the two vehicles do not touch.
Apply the parking brake firmly.
Shift the transmission to position P.
Switch off all electrical consumers (e.g. radio, blower, etc.).
Open the hood.

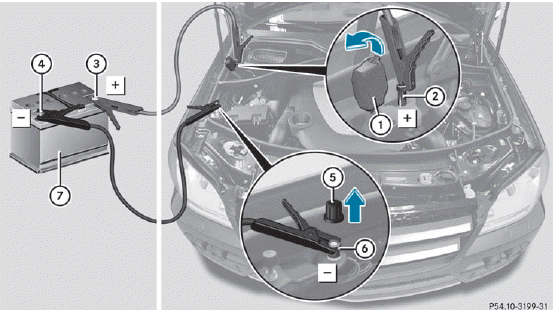

Position number 7 identifies the charged battery of the other vehicle or an

Position number 7 identifies the charged battery of the other vehicle or an equivalent jumpstarting device.

Lift up cover 1 of positive terminal 2 in the direction of the arrow.
Connect positive terminal 2 on your vehicle to positive terminal 3 of donor battery 7 using the jumper cable, beginning with your own battery.
Start the engine of the donor vehicle and run it at idling speed.
Remove cover 5 from earth point 6.
Connect negative terminal 4 of donor battery 7 to earth point 6 of your vehicle using the jumper cable, connecting the jumper cable to donor battery 7 first.
Start the engine.
Allow the engine to run for a few minutes before disconnecting the jumper cable.
First, remove the jumper cable from earth point 6 and negative terminal 4, then from positive terminal 2 and positive terminal 3, each time disconnecting from the contacts on your own vehicle first.
Have the battery checked at a qualified specialist workshop, e.g. an authorized Mercedes- Benz Center. The jump-starting procedure is not a standard operating state; therefore, have the battery checked.

    Charging the batter
    WARNING   Never charge a battery still installed in the vehicle unless a battery charger unit approved by Mercedes-Benz is being used. Gases may escape during charging and cause explosio ...
