Mercedes-Benz GL-Class: Fuse box in the cargo compartment - Fuses - Breakdown assistance - Mercedes-Benz GL-Class Owner's ManualMercedes-Benz GL-Class: Fuse box in the cargo compartment

Open the tailgate.

► To open: insert a suitable object, e.g.

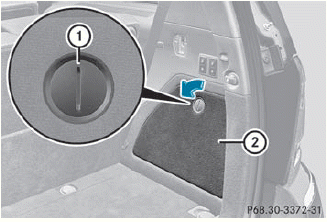

To open: insert a suitable object, e.g. a coin, into the slot of release button 1 on the cover.
Turn release button 1 90° in the direction of the arrow.
Open cover  2 downwards.
