Range Rover: Exterior mirrors

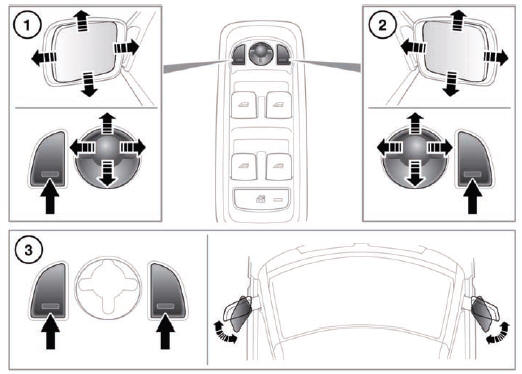

1. Left mirror adjustment.
2. Right mirror adjustment.
3. Press both switches together to fold/unfold the mirrors.
Note: If the mirrors are manually folded or knocked into the folded position accidentally, the mirror head will be loose. To re-engage the mechanism, fold, then unfold the mirrors using the switches.
A thermal cut-out which will temporarily disable the powerfold feature if the switches are operated repeatedly.
Powerfold will only operate if the vehicle is stationary, or traveling at 12 mph (20 km/h) or less.
The mirrors can be adjusted and folded when the ignition is on and for up to 5 minutes after the ignition is switched off, provided the driver’s door is not opened.
Press the appropriate button to select the mirror to be adjusted (button indicator illuminates), then use the joystick control to adjust the mirror glass.
Mirrors
...
Mirror dip when reversing
Selecting reverse gear will cause the door mirrors to automatically adjust, providing
an improved viewing angle for reversing.
The exact dipped position can be adjusted when the mirrors are dipped. ...
