Buick Enclave: Engine Coolant Temperature Gauge - Warning Lights, Gauges, and Indicators - Instruments and Controls - Buick Enclave Owner's ManualBuick Enclave: Engine Coolant Temperature Gauge

Metric

Metric

English

English

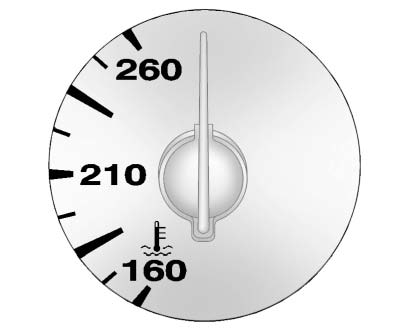

This gauge shows the engine coolant temperature. Under normal driving conditions the gauge will read 100°C (210°F) or less.

If the gauge pointer is near 125°C (260°F), the engine is too hot.

It means that the engine coolant has overheated. If the vehicle has been operating under normal driving conditions, pull off the road, stop the vehicle, and turn off the engine as soon as possible.

See Engine Overheating  for more information.

    Fuel Gauge
    Metric     English When the ignition is on, the fuel gauge shows about how much fuel the vehicle has left in the fuel tank. An arrow on the fuel gauge indicates the side of the ve ...

    Voltmeter Gauge
    When the engine is not running, but the ignition is on, this gauge shows the battery's state of charge in DC volts. When the engine is running, this gauge shows the condition of the charging ...
