Infiniti QX: Engine compartment - Fuses - Maintenance and do-it-yourself - Infiniti QX Owner's ManualInfiniti QX: Engine compartment

CAUTION

CAUTION
 Never use a fuse of a higher or lower amperage rating than that specified on the fuse box cover. This could damage the electrical system or cause a fire.

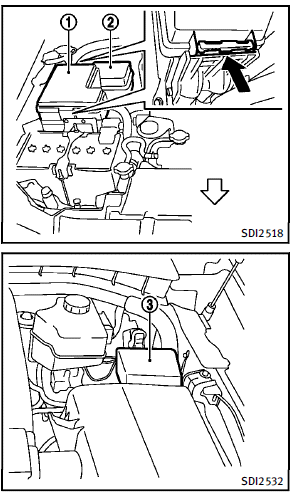

If any electrical equipment does not operate, check for an open fuse. 1. Be sure the ignition switch is pushed to the OFF or LOCK position and the headlight switch is turned to OFF. 2. Open the engine hood and remove the cover on the battery. 3. Remove the fuse/fusible link holder cover 1 , 2 or 3 . 4. Remove the fuse with the fuse puller.

5. If the fuse is openA , replace it with a

5. If the fuse is openA , replace it with a new fuseB . Spare fuses are stored in the passenger compartment fuse box. 6. If a new fuse also opens, have the electrical system checked and repaired by an INFINITI retailer.

Fusible links

If any electrical equipment does not operate and fuses are in good condition, check the fusible links. If any of these fusible links are melted, replace only with genuine INFINITI parts.
