Mercedes-Benz GL-Class: Detachable panel (3rd row of seats)
If you drop objects underneath the seats in the 3rd row, you can remove the panel in order to reach beneath the seat.
If there are objects underneath the seat,
the seat can no longer be folded up or down
fully. The seat could be damaged.
Only drive with the panel completely installed.
► To open: fold the corresponding seat up
or
down.
► When the seat is halfway folded up or
down,
lock the backrest manually.

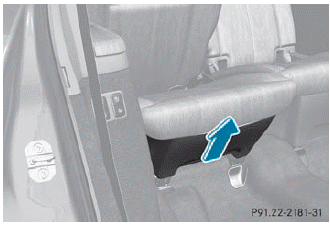

► Grasp the panel recess.
► Pull the panel in the direction of the
arrow
and remove it.
► To close: fold the corresponding seat up
or
down.
► When the seat is halfway folded up or
down,
lock the backrest manually.
► Attach the panel using the guide pins.
► Push the panel downwards until it
engages.
► Fold the seat up and down fully to check
that the panel is seated correctly.
Folding the seats up/down (3rd row ofseats)
The 3rd row of seats consists of two
electrically foldable individual seats, which
can be lowered into the cargo compartment.
If the seat is not correctly locked in position,
the display message ...
