Mercedes-Benz GL-Class: Dashboard fuse box
Do not use a pointed object such as a
screwdriver to open the cover in the
dashboard. You could damage the
dashboard or the cover.

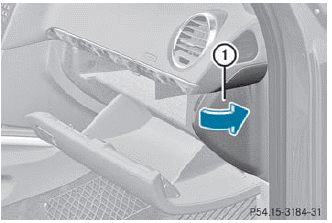

► To open: pull cover 1 outwards in
the
direction of the arrow and remove it.
► To close: clip in cover 1 at the
front of the
dashboard.
► Fold cover 1 inwards until it
engages.
Before changing a fuse
► Park the vehicle and apply the parking
brake.
► Switch off all electrical consumers.
► Remove the SmartKey from the ignition
lock.
The fuses are located in various fuse boxes: ...
Fuse box in the engine compartment
► Open the hood.
Illustrated: GL 450 (GL 350 BlueTEC, GL 550 are
similar)
► Remove any existing moisture from the
fuse box using a dry cloth.
► To open: open clamps 2.
` ...
