Buick Enclave: Cooling System
The cooling system allows the engine to maintain the correct working temperature.

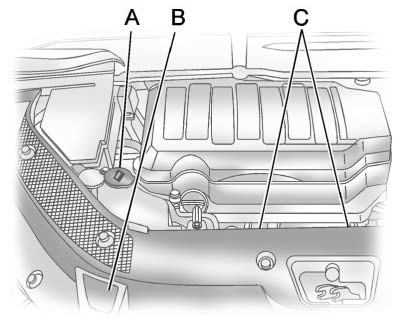

A. Engine Coolant Recovery Tank
B. Radiator Pressure Cap
C. Engine Cooling Fans (Out of View)
WARNING
An electric engine cooling fan under the hood can start up even when the engine
is not running and can cause injury. Keep hands, clothing, and tools away from any
underhood electric fan.
WARNING
Heater and radiator hoses, and other engine parts, can be very hot. Do not touch
them. If you do, you can be burned.
Do not run the engine if there is a leak. If you run the engine, it could lose all coolant. That could cause an engine fire, and you could be burned. Get any leak fixed before you drive the vehicle
Notice: Using coolant other than DEX-COOL® can cause premature engine, heater core, or radiator corrosion. In addition, the engine coolant could require changing sooner, at 50 000 km (30,000 mi) or 24 months, whichever occurs first. Any repairs would not be covered by the vehicle warranty.
Always use DEX-COOL (silicate-free) coolant in the vehicle.
Engine Air Cleaner/Filter
When to Inspect the Engine Air Cleaner/Filter
Inspect the air cleaner/filter at the scheduled maintenance intervals and replace
it at the first oil change after each 80 000 km (50,000 mile) interva ...
Engine Coolant
The cooling system in the vehicle is filled with DEX-COOL® engine coolant. The
coolant is designed to remain in the vehicle for 5 years or 240 000 km (150,000
mi), whichever occurs first.
The fo ...
