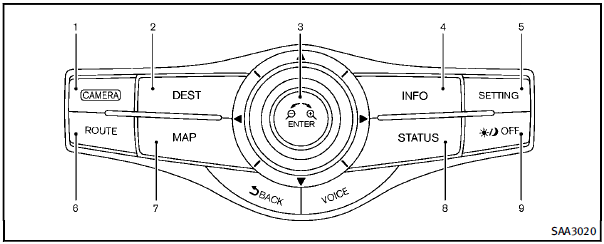

Infiniti QX: Center multi-function control panel
1. “CAMERA” Around View Monitor display
button (P.4-21) 2, 6, 7.For navigation system control buttons
(Refer to the separate Navigation
System Owner’s Manual.)
3. INFINITI controller (P.4-4)
4. “INFO” vehicle and navigation information
button (P.4-8)
5. “SETTING” button (P.4-13)
8. “STATUS” status display button
(P.4-8)
9. “ OFF” brightness control and
display ON/OFF button (P.4-8)
Safety note
WARNING
► Do not disassemble or modify this
system. If you do, it may result in
accidents, fire, or electric shock.
► Do not use this system if you notice any
abnormality, such ...
How to use INFINITI controller
Choose an item on the display by rotating
or pushing the center dial 1 upward/
downward, and push the ENTER button 2
for operation.
If you push the BACK button3 before the
setup is complet ...
