Range Rover: Audio/video controls
WARNING
Do not adjust the touch screen controls, or allow the system to distract the driver, while the vehicle is moving. Driver distraction can lead to accidents, causing serious injury or death.
WARNING
Sustained exposure to high sound levels can damage your hearing.

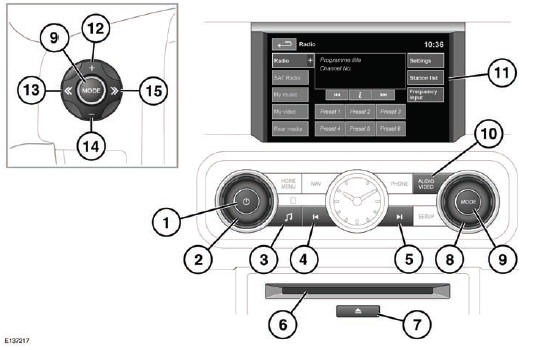

1. On/off and volume control: Press to switch the system on/off.
Note: The audio system will operate with the ignition on or off, but will switch off with the ignition. Switch the audio on again if required.
2. Volume: Rotate to adjust volume level.
3. Press to display the Audio settings.
4. Seek down: Short press to auto-seek to the previous radio station or previous track on chosen audio source.
5. Seek up: Short press to auto-seek to the next radio station or next track on chosen audio source.
• Long press to activate manual-seek, scan forwards through a track.
6. CD or CD/DVD loading slot.
The player will accommodate one disc at a time. With the Stored CD player, up to 10 CDs can be uploaded to the CD store.
Only discs with CDDA tracks, and no other type, can be uploaded to the CD store.
Insert a disc into the loading slot until resistance is felt. The player mechanism will complate the loading.
7. Eject: Press to eject a CD/DVD.
8. Rotate to scroll through audio sources.
9. Mode: Press to view audio sources.
10. Audio/Video: Press to display the Audio/Video menu.
11. Touch screen.
12. Press to increase volume.
13. Press to scan down presets.
14. Press to decrease volume.
15. Press to scan up presets.
Audio settings
To view the audio settings menu, press the settings button (3) or the Audio settings
soft key on the touch screen.
To adjust the sound settings:
• Touch the + or - soft keys to adjust Bass, T ...
