find...? - Breakdown assistance - Mercedes-Benz GL-Class Owner's Manual" border="0" width="100" align=right style="margin: 0px 3px 0 3px">Mercedes-Benz GL-Class: Vehicles with a TIREFIT kit

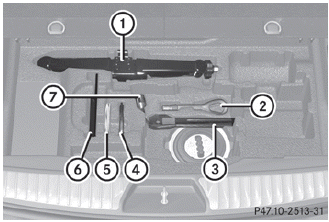

find...? / Vehicle tool kit / Vehicles with a TIREFIT kit► Lift the cargo compartment floor up.
1 Jack
2 Towing eye
3 Ratchet wrench
4 Alignment bolt
5 Fuse allocation chart
6 Folding wheel chock
7 Lug wrench
Folding the cargo compartment floor up
► Press release handle 2 in the direction
of
the arrow.
► Lift cargo compartment floor 1 up by
release handle 2.
► Fold out hook 3 on the underside of the
cargo compartmen ...
Vehicles with a "Minispare" emergencyspare wheel
► Lift the trunk floor up.
1 Alignment bolt
2 Towing eye
3 Lug wrench
4 Ratchet wrench
5 Velcro fastener
6 Jack
7 Wheel bolts
8 Folding wheel chock
9 Fuse allocation chart
10 Stowage ...
