Mercedes-Benz GL-Class: Turn signals - Combination switch - Exterior lighting - Lights and windshield wipers - Mercedes-Benz GL-Class Owner's ManualMercedes-Benz GL-Class: Turn signals

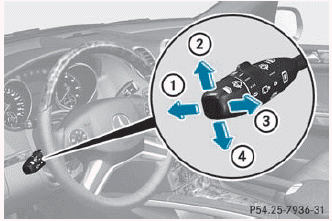

1 High-beam headlamps

1 High-beam headlamps
2 Right turn signal
3 High-beam flasher
4 Left turn signal

To indicate briefly: press the combination switch briefly to the pressure point in the direction of arrow 2 or 4.

The corresponding turn signal flashes three times.

To indicate: press the combination switch beyond the pressure point in the direction of arrow 2 or 4.

To switch on the high-beam headlamps:

turn the SmartKey in the ignition lock to position 2 or start the engine.

Turn the light switch to .

Press the combination switch beyond the pressure point in the direction of arrow 1.

The instrument indicator lamp in the instrument cluster lights up.

To switch off the high-beam headlamps: move the combination switch back to its normal position.

The instrument indicator lamp in the instrument cluster goes out.

    High-beam flasher
    ► To switch on: turn the SmartKey in the ignition lock to position 1 or 2 or start the engine. ► Pull the combination switch in the direction of arrow 3. ...
