Cadillac Escalade: Tow/Haul Mode
The vehicle has a Tow/Haul Mode. The Tow/Haul Mode adjusts the transmission shift pattern to reduce shift cycling, providing increased performance, vehicle control, and transmission cooling when driving down steep hills and mountain grades, towing, or hauling heavy loads.

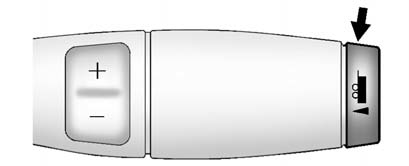

Press the button located on the end of the shift lever to turn the tow/haul on or off. When the tow/haul is on, a light on the instrument panel cluster will come on.
See Tow/Haul Mode Light and Hill and Mountain Roads for more information.
Also see “Tow/Haul Mode” under Towing Equipment for more information.
The Tow/Haul Mode works with the Autoride® feature, if the vehicle has this, to enhance the ride when trailering or with a loaded vehicle. See Continuous Damping Control (CDC) .
Manual Mode
Driver Shift Control (DSC)
The vehicle has Driver Shift Control (DSC). DSC controls the vehicle's transmission
and vehicle speed while driving down hill or towing a trailer by allowing you to
...
Grade Braking
The Grade Braking shift modes can be activated by pressing the button on the
end of the shift control lever. While in Range Selection Mode, Grade Braking is
deactivated allowing the driver to select ...
